Visual, Spatial, Geometric-Preserved Place Recognition for Cross-View and Cross-Modal Collaborative Perception


Conference paper


Peng Gao, Jing Liang, Yu Shen, Sanghyun Son, Ming C Lin
IROS (Best Paper Award), 2023

Cite

Cite

APA   Click to copy
Gao, P., Liang, J., Shen, Y., Son, S., & Lin, M. C. (2023). Visual, Spatial, Geometric-Preserved Place Recognition for Cross-View and Cross-Modal Collaborative Perception. In IROS (Best Paper Award).


Chicago/Turabian   Click to copy
Gao, Peng, Jing Liang, Yu Shen, Sanghyun Son, and Ming C Lin. “Visual, Spatial, Geometric-Preserved Place Recognition for Cross-View and Cross-Modal Collaborative Perception.” In IROS (Best Paper Award), 2023.


MLA   Click to copy
Gao, Peng, et al. “Visual, Spatial, Geometric-Preserved Place Recognition for Cross-View and Cross-Modal Collaborative Perception.” IROS (Best Paper Award), 2023.


BibTeX   Click to copy

@inproceedings{gao2023a,
  title = {Visual, Spatial, Geometric-Preserved Place Recognition for Cross-View and Cross-Modal Collaborative Perception},
  year = {2023},
  author = {Gao, Peng and Liang, Jing and Shen, Yu and Son, Sanghyun and Lin, Ming C},
  booktitle = {IROS (Best Paper Award)},
  howpublished = {}
}

Abstract

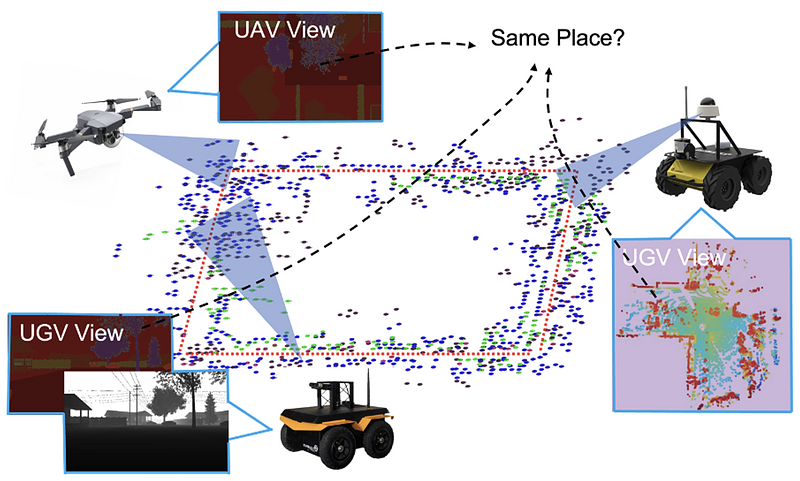

Place recognition plays an important role in multirobot collaborative perception, such as aerial-ground search and rescue, in order to identify the same place they have visited. Recently, approaches based on semantics showed the promising performance to address cross-view and cross-modal challenges in place recognition, which can be further categorized as graphbased and geometric-based methods. However, both methods have shortcomings, including ignoring geometric cues and affecting by large non-overlapped regions between observations. In this paper, we introduce a novel approach that integrates semantic graph matching and distance fields (DF) matching for cross-view and cross-modal place recognition. Our method uses a graph representation to encode visual-spatial cues of semantics and uses a set of class-wise DFs to encode geometric cues of a scene. Then, we formulate place recognition as a two-step matching problem. We first perform semantic graph matching to identify the correspondence of semantic objects. Then, we estimate the overlapped regions based on the identified correspondences and further align these regions to compute their geometricbased DF similarity. Finally, we integrate graph-based similarity and geometry-based DF similarity to match places. We evaluate our approach over two public benchmark datasets, including KITTI and AirSim. Compared with the previous methods, our approach achieves around 10% improvement in ground-ground place recognition in KITTI and 35% improvement in aerialground place recognition in AirSim.
